G28997 ~ Unique Small 120VAC Power Transformer 6V to 21V

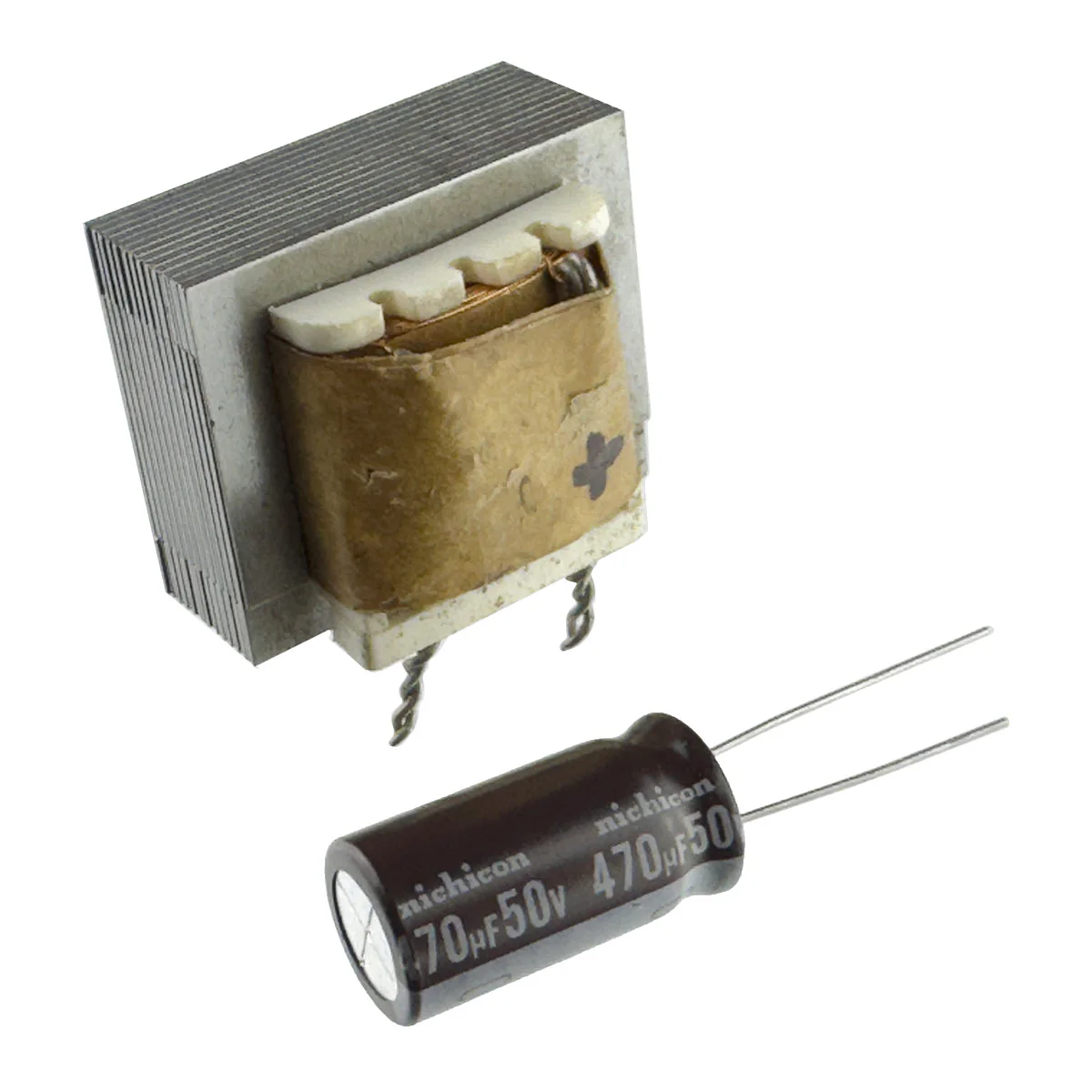

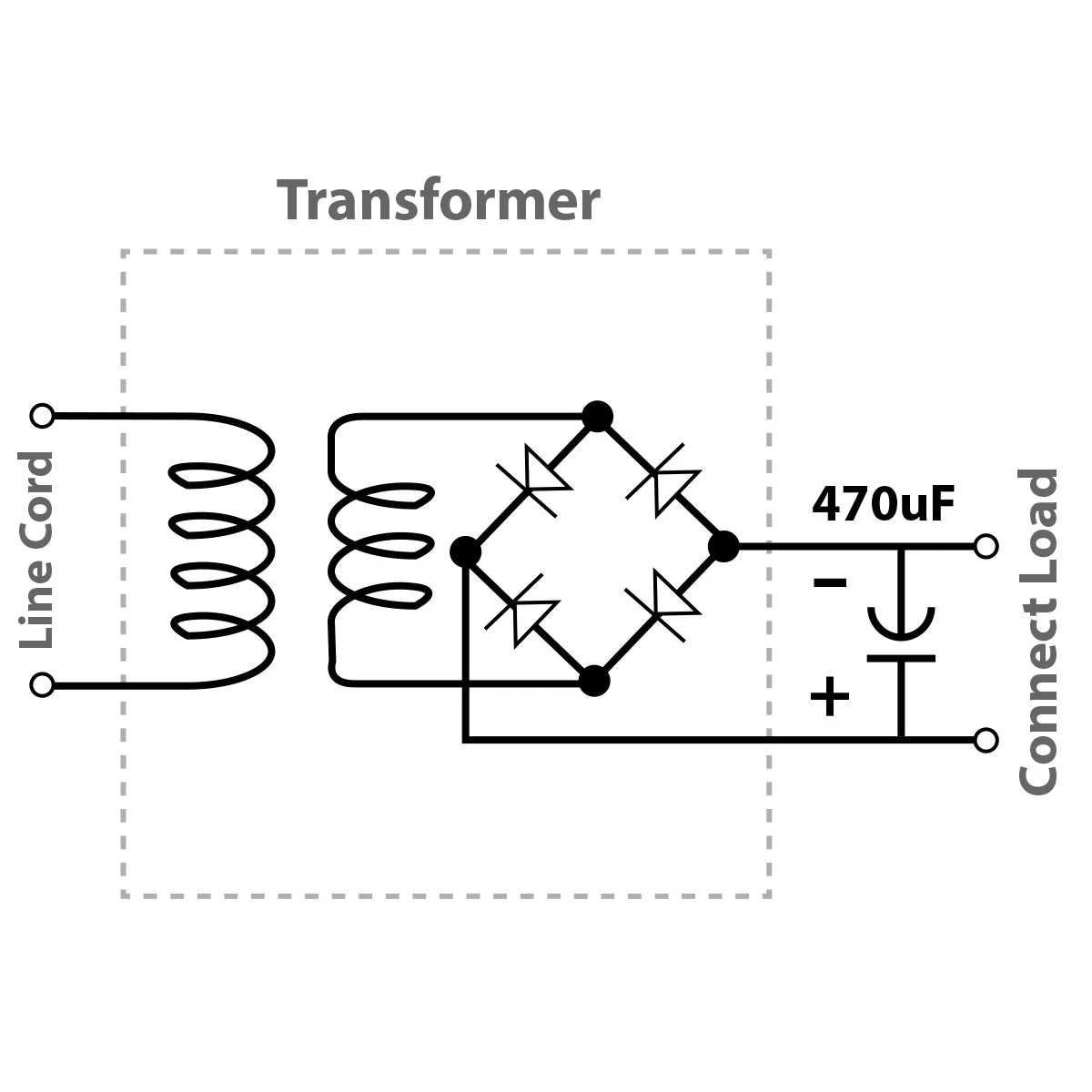

Unique power transformer has 4 diodes built in soldered as a full wave bridge rectifier. The eyelets of the transformer can be soldered to a standard line cord. The twisted wires can be connected observing polarity to the 470uF capacitor (included) and you can measure this output with a VOM: No load -21VDC, 250mA (50 Ohm load) 12VDC, 500mA 6VDC 12 Ohm load. Other voltages and currents available with lower resistance loads. Size of transformer is about 1.4" x 1.2" x 1.2" tall. (excluding leads). You get 1 transformer and 1 470uF capacitor. Brand New!
Unique power transformer has 4 diodes built in soldered as a full wave bridge rectifier. The eyelets of the transformer can be soldered to a standard line cord. The twisted wires can be connected observing polarity to the 470uF capacitor (included) and you can measure this output with a VOM: No load -21VDC, 250mA (50 Ohm load) 12VDC, 500mA 6VDC 12 Ohm load. Other voltages and currents available with lower resistance loads. Size of transformer is about 1.4" x 1.2" x 1.2" tall. (excluding leads). You get 1 transformer and 1 470uF capacitor. Brand New!
$1.05
Original: $2.99
-65%G28997 ~ Unique Small 120VAC Power Transformer 6V to 21V—
$2.99
$1.05Description
Unique power transformer has 4 diodes built in soldered as a full wave bridge rectifier. The eyelets of the transformer can be soldered to a standard line cord. The twisted wires can be connected observing polarity to the 470uF capacitor (included) and you can measure this output with a VOM: No load -21VDC, 250mA (50 Ohm load) 12VDC, 500mA 6VDC 12 Ohm load. Other voltages and currents available with lower resistance loads. Size of transformer is about 1.4" x 1.2" x 1.2" tall. (excluding leads). You get 1 transformer and 1 470uF capacitor. Brand New!
